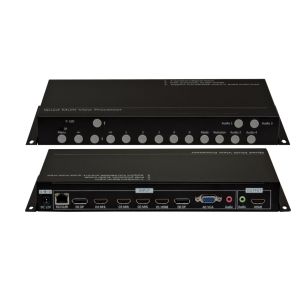

VIS-MV71
7x1 Multiviewer & Scaler with Audio
Introduction
VIS-MV71 is a 7x1 Multiviewer for supporting multiple sources on single screen under Quad mode, PIP or POP mode.
The Multiviewer has seven inputs-4xHDMI,2xDisplayPort,1xVGA supporting resolutions up to 1920x1080@60. All digital audio from HDMI & Display and Analogue audio(binding with VGA) are switched to both the digital audio in HDMI and analogue audio out. Control is via OSD,RS232(software or commands),IR remote and front panel buttons.
The VIS-MV71 an extremely flexible Multiviewer and a very capable Presentation Switcher making it a good fit for many different user applications.
Main Features
• Supports 1920x1080@60Hz input
• Supports 1920x1080@60Hz output
• On-screen display (OSD) makes setup and switching easy
• 9-window layouts
• Assignable front panel and remote buttons
• 7-video inputs - 4x HDMI(3x compatible to MHL) 2x DP 1xVGA
• HDCP Compliant
• supports up-scaling & down-scaling
• 24-bit Color depth
• Auto-scaling, auto-detect EDID
• Volume control
• IR remote, RS232,software and front panel
| Model | VIS-MV71 |
| Video Input Formats | HDMI, DisplayPort, RGBHV |
| Audio Input Formats | HDMI and DisplayPort embeded digital audio |
| Video Output Formats | HDMI RGB 4:4:4 |
| Audio Output Formats | HDMI:embedded digital audio, |
| Format Compliance | HDMI v.1.3, MHL /DisplayPort v.1.2 HDCP compliant, |
| Color Depth | 24bit |
|
Audio Bandwidth Input connectors |
20 Hz to 20 kHz 4xHDMI 19-pin female connectors; 2xDisplayPort 20-pin female connectors 1 x HD15(VGA) female connector 1x Analog Audio 3.5mm female connector 1x Power connector with fuse |
| Output Connectors |
1xHDMI 19-pin female connector 1x Analog audio 3.5mm female connectors |
| Control | RS232,Software interface, panel buttons extend, IR front&extent IR receiver and OSD menu |
| Cotrol software | VIS-Quadsoft |
| Voltage | 100~220VAC/50-60Hz |
| Dimension | 275mm*33mm*163mm(LxHxD) |
| Power | 15Watts(max.) |
